10′ Tilt-Lock™ Base Shoe – Brushed Anodized Silver
in stock
-
BAB
-
BAS
The Tilt-Lock Base Shoe is engineered for high performance. Tested to comply with the High-Velocity Hurricane Zone of the Florida Building Code, this system delivers reliable strength for everything from residential installations to your most demanding commercial projects.

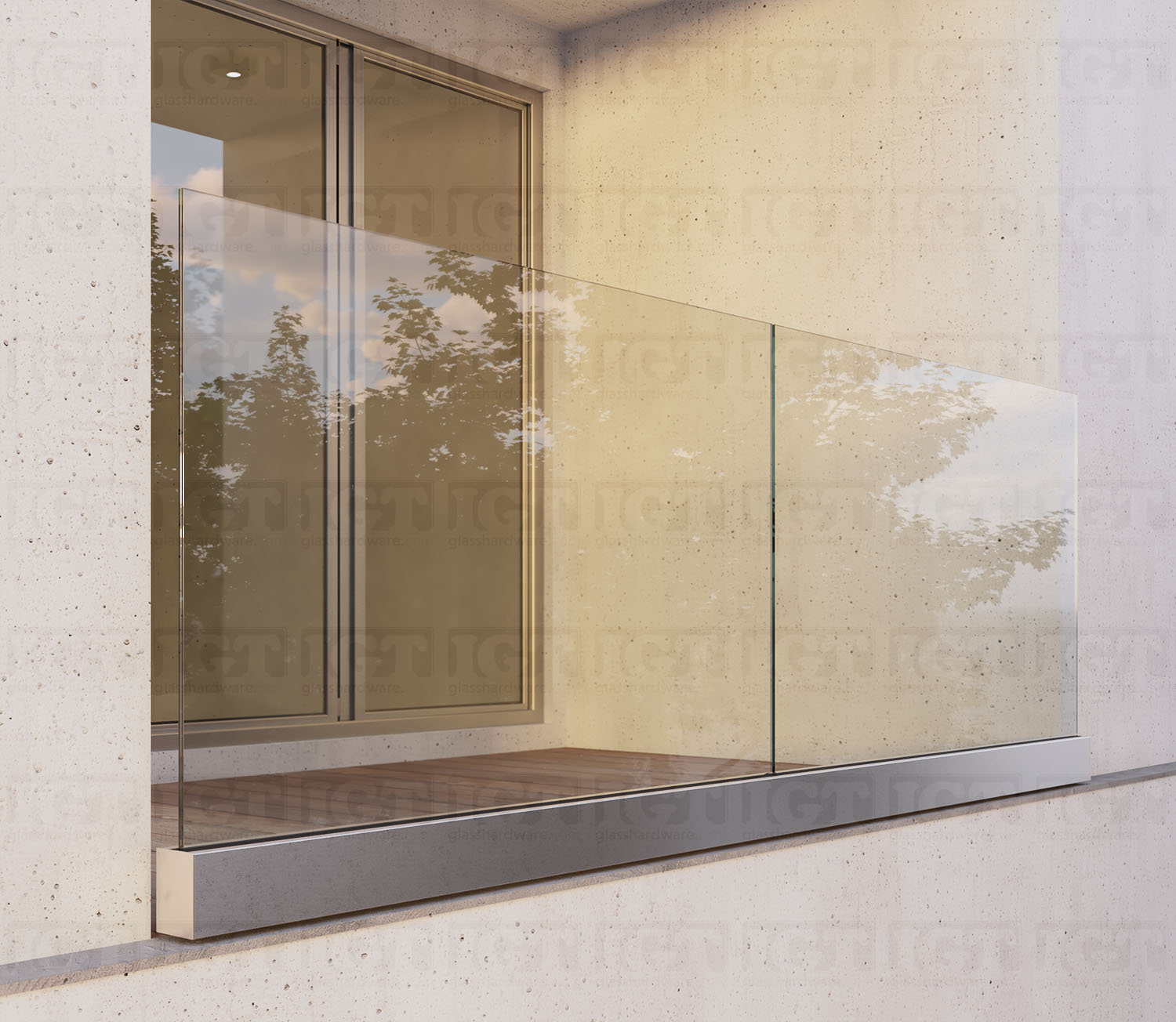

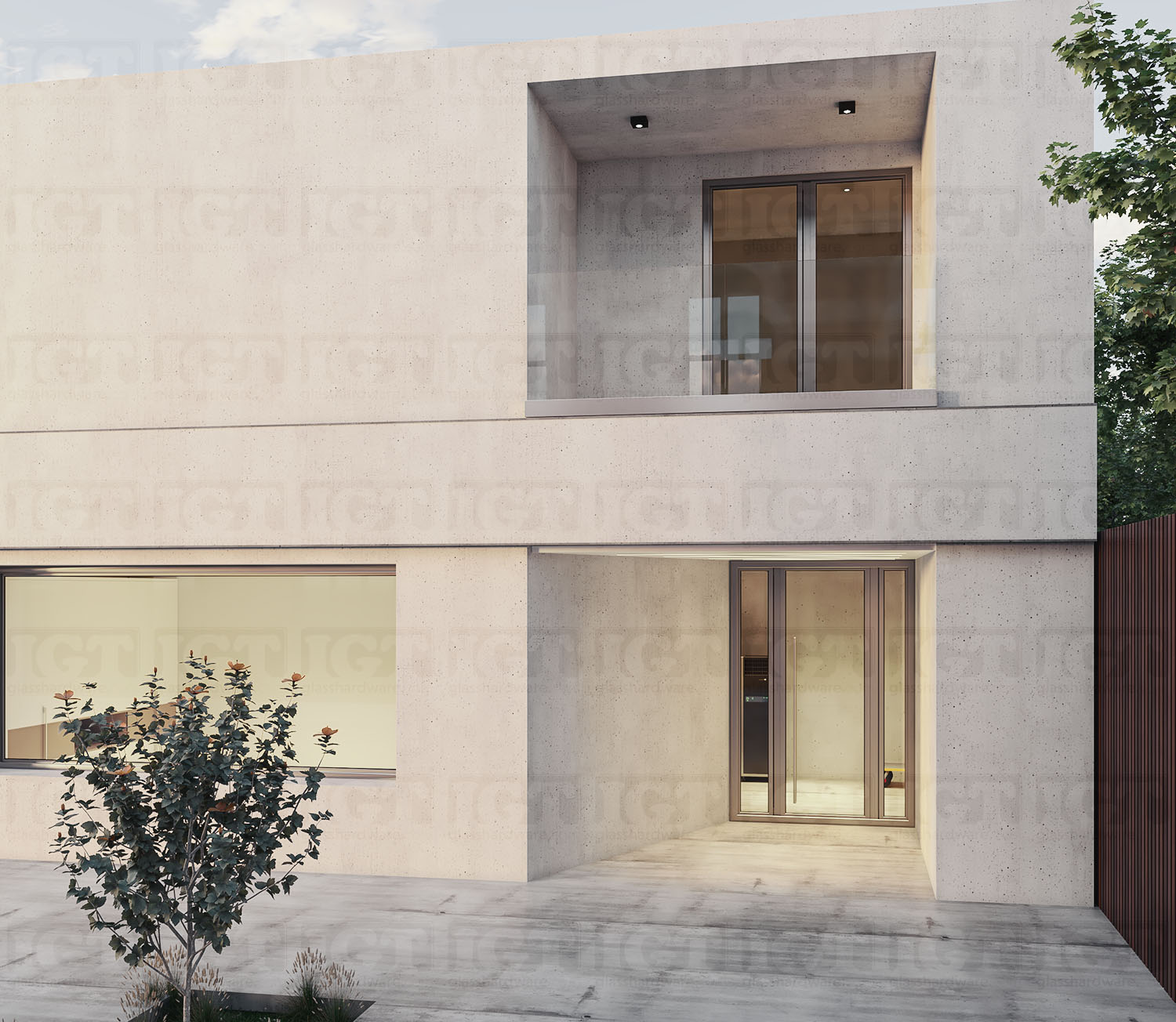

It comes pre-drilled for top-mount or fascia-mount jobs, with a anodized aluminum construction that offers excellent corrosion resistance for outdoor projects like balcony and terrace railings.

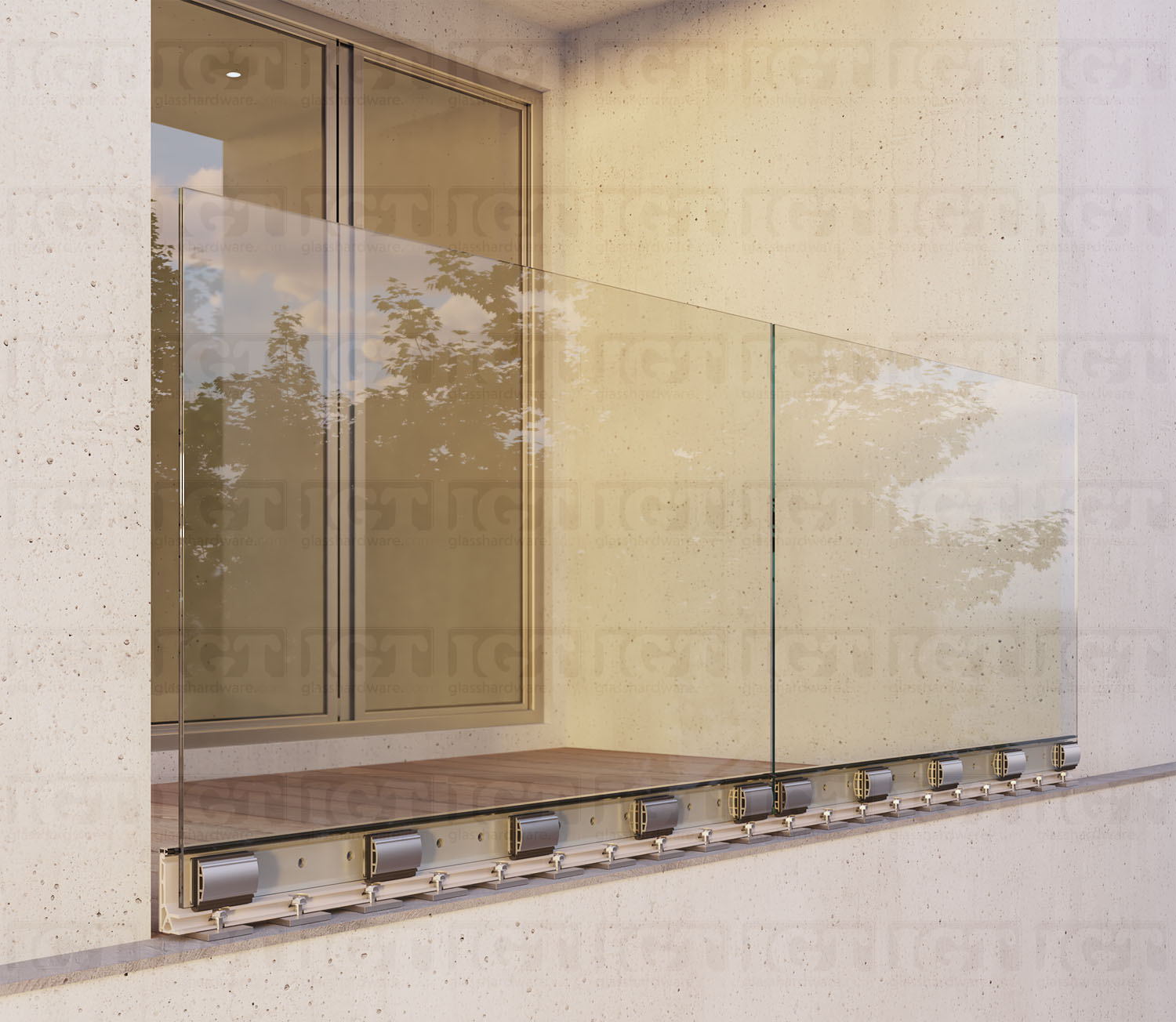

When paired with the dry glaze Tilt-Lock mechanisms, you can fine-tune your glass panels to perfect plumb, with up to 30 mm of forward and backward adjustment for precise alignment—especially on uneven surfaces.
Compatible with 1/2″, 9/16″, and heavy 13/16″ laminated glass, the Tilt-Lock Base Shoe supports a wide range of glass thicknesses. It’s ideal for everything from standard residential railing to high-wind and high-load exterior projects.
What’s included:
- One 10′ Channel

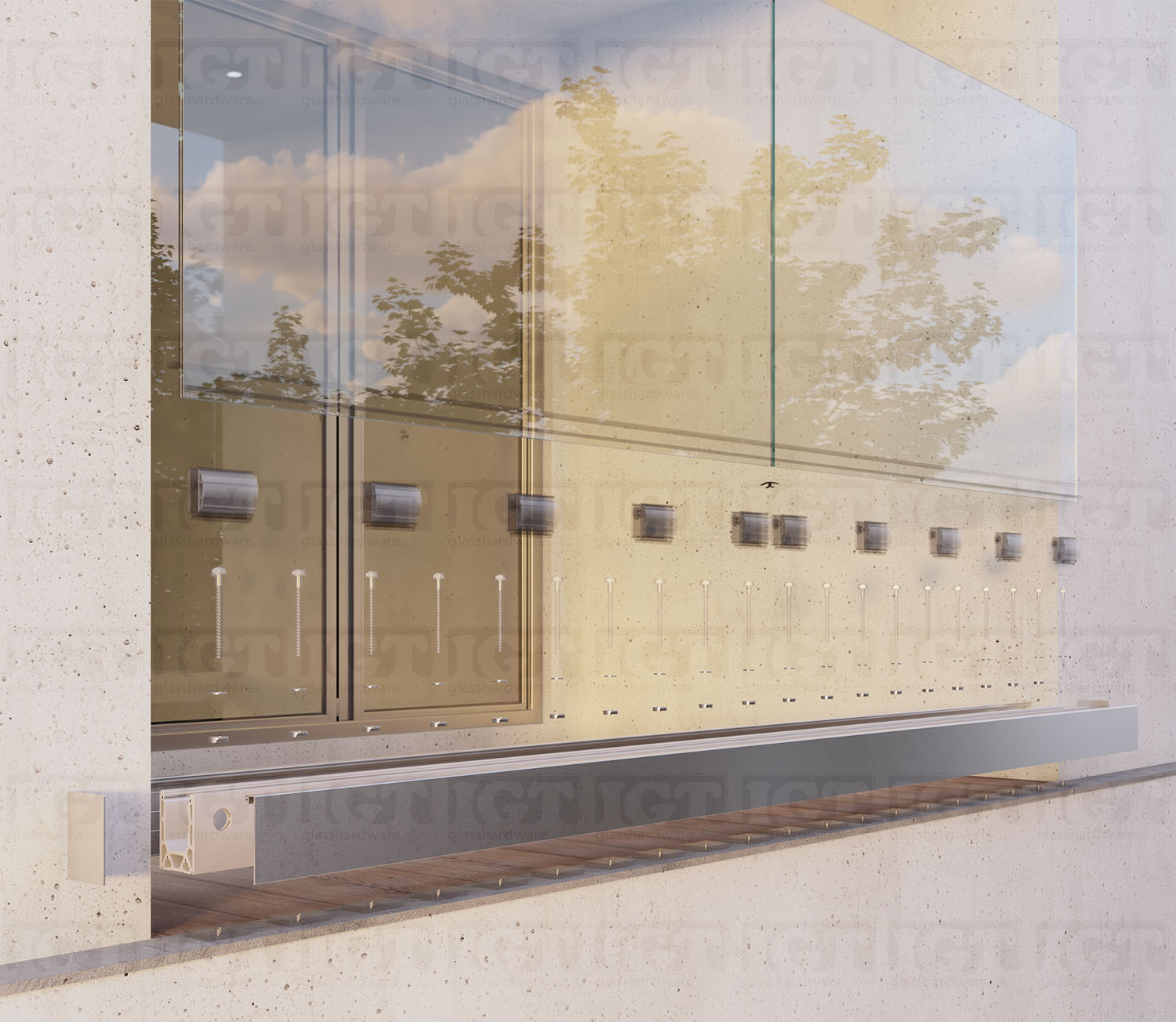

- Cladding
- End caps
- Joining gasket

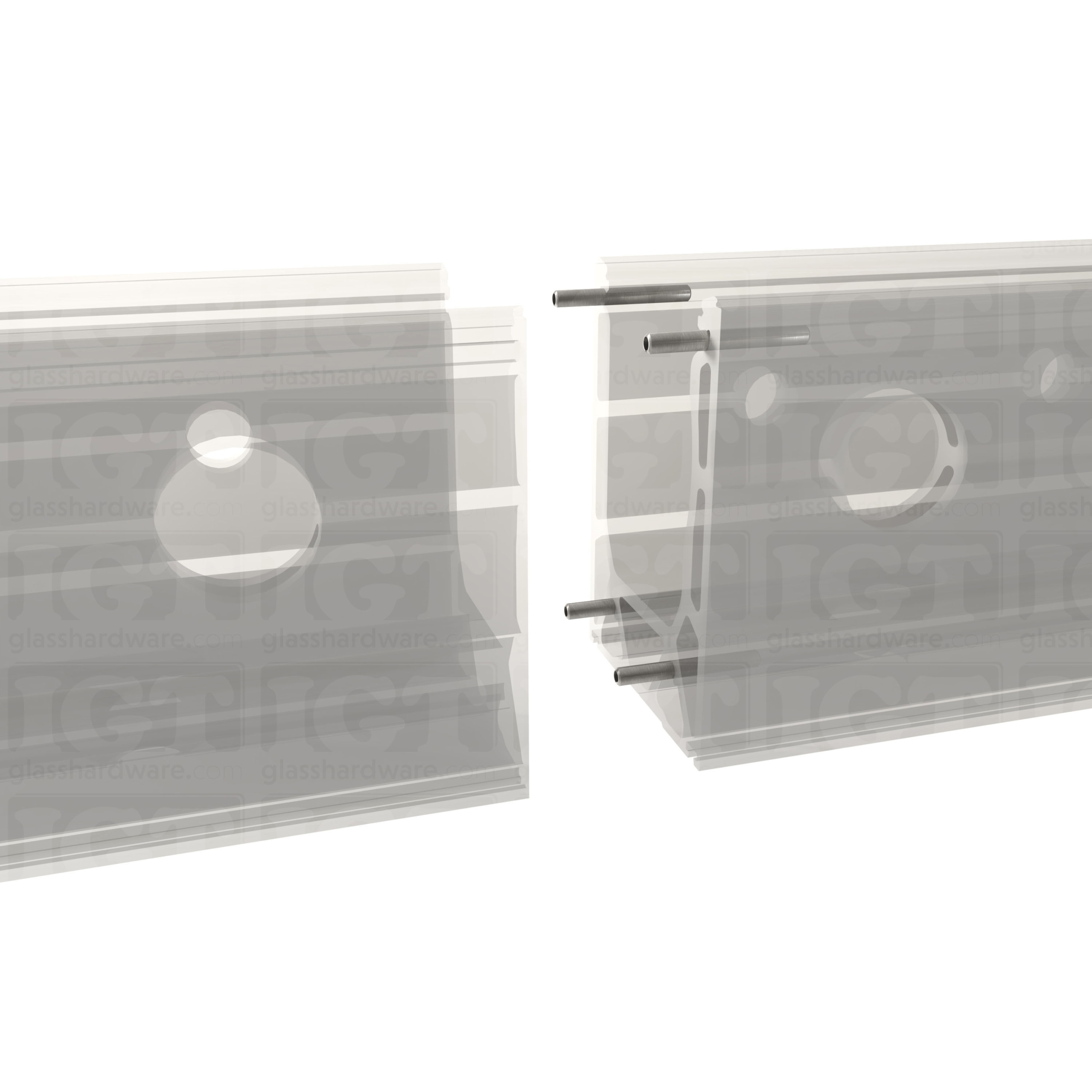

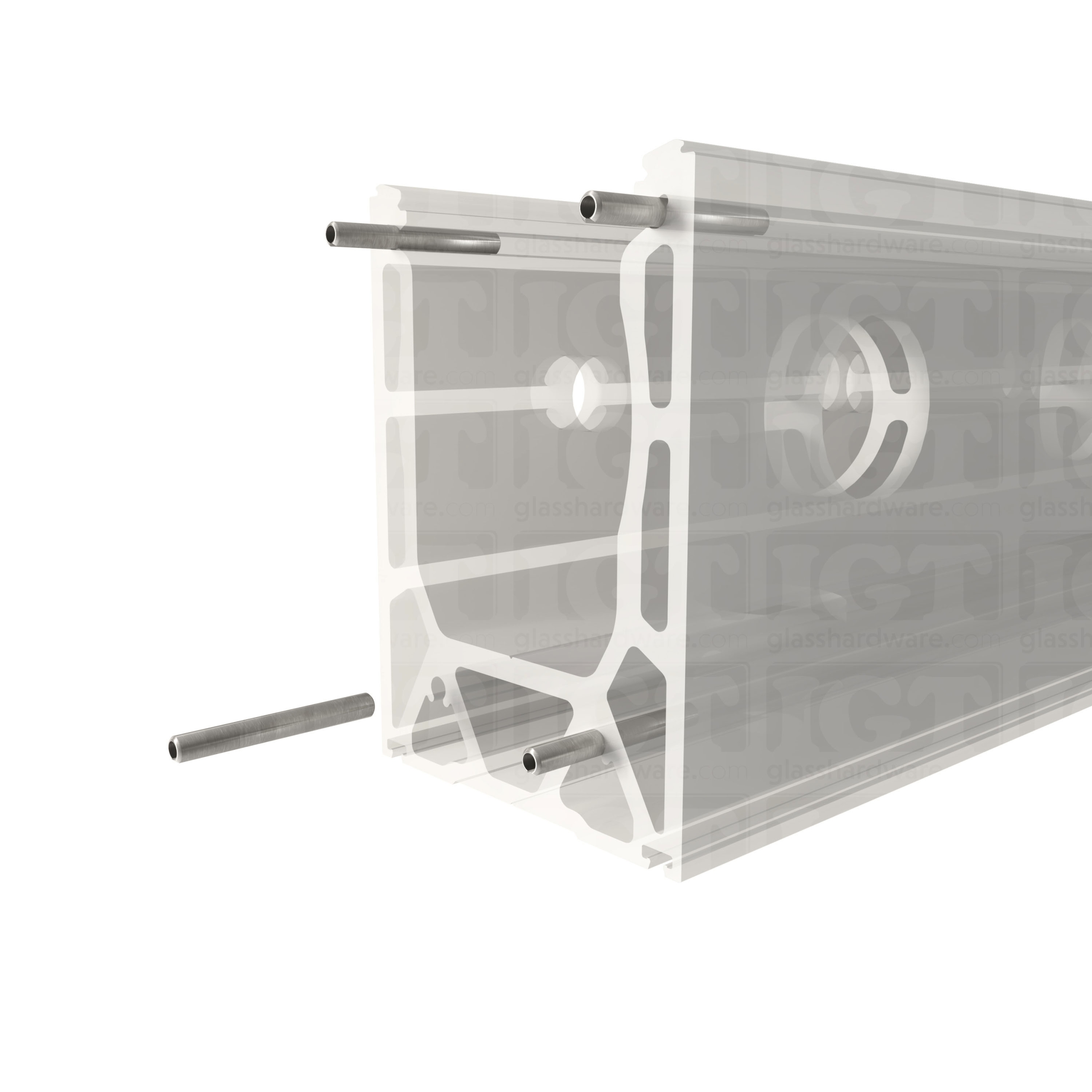

- 4 Joining pins

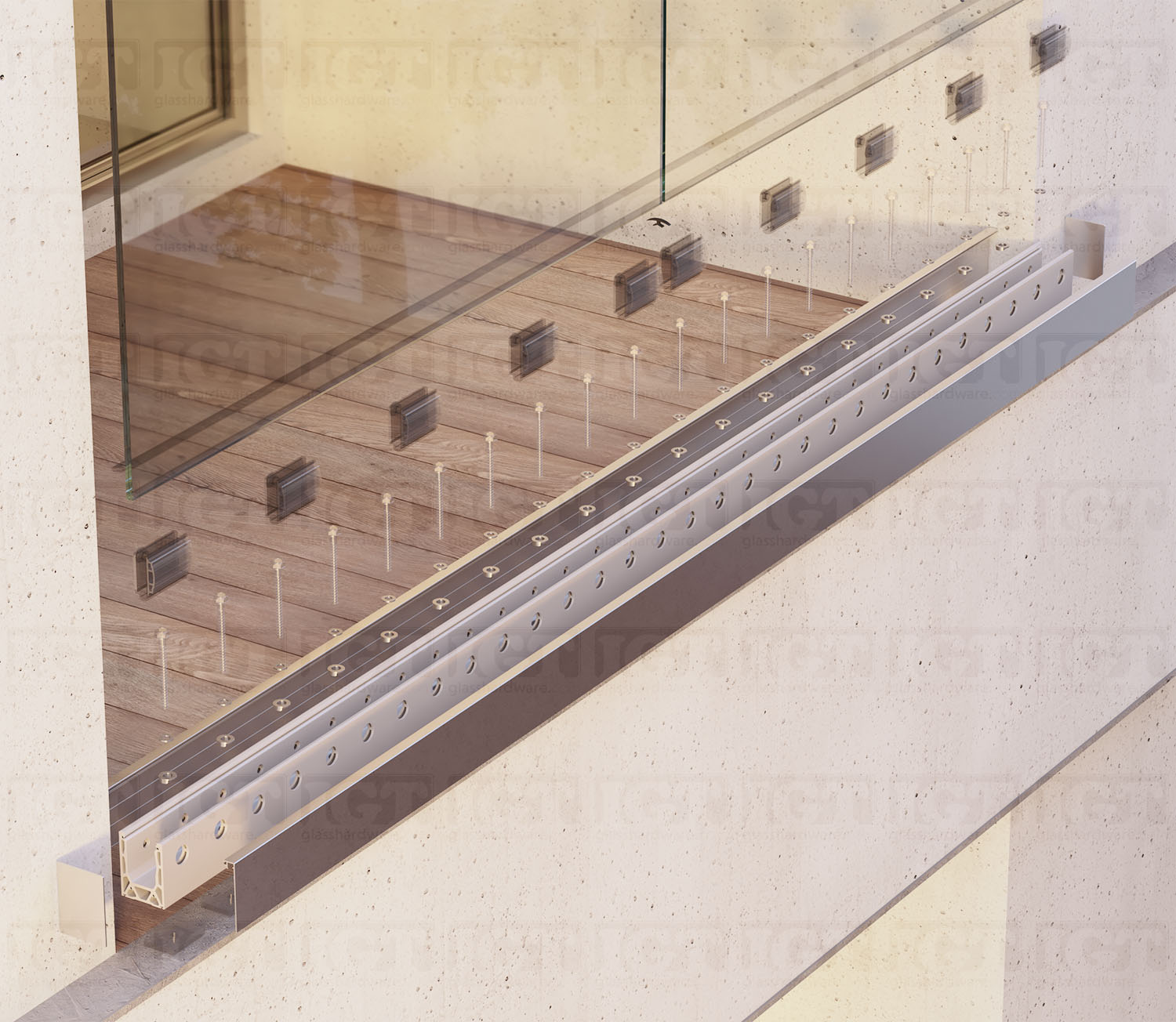

- 20 Stabilizing washers
- 20 Flat washers
| Weight | 65 lbs |
|---|---|
| Pkg Size | 124 × 6.25 × 4.25 in |
| Material | Aluminum |
| Finish | Brushed Anodized Silver |
| Mounting Type | Fascia mount, Top mount |
| Glass thickness (Inches) | 13/16 inch, 1/2", 9/16" |
| Glass Type | Tempered and laminated glass |
| Mounting Hole Diameter (Bottom) | 11/16 inch (17.02 mm) |
| Mounting Hole Diameter (Side) | 11/16 inch (17.02 mm) |
| Drilling Center-to-Center (Bottom) | 6 inches (152.62 mm) |
| Drilling Center-to-Center (Side) | 4 inches (101.74 mm) |
| Height | 4 5/8 inches (118.17 mm) |
| Length | 10 feet |
| Width | 3 3/8 inches (85.87 mm) |
| Certifications | Miami-Dade County NOA # 21-0312.07 |
