Top and Bottom Bilboa Pivot Hinge – Brushed Nickel
in stock
-
CP
-
BN
-
PVD
-
ORB
Class and elegance
Designed with beveled edges and soft rounded corners, the Top and Bottom Bilboa Pivot Hinge will decorate your next shower door project with a touch of elegance.
It’s made of Solid Brass, so it has exceptional corrosion resistance and durability. Perfect for humid environments, like bathrooms.
It’s also self-centering from 15 degrees of its closed position, giving your clients a soft, closed door behind them.
And it’s suitable for 3/8 to 1/2 inch tempered glass, with a maximum door capacity of 100 pounds using 2 hinges.*
What’s included:

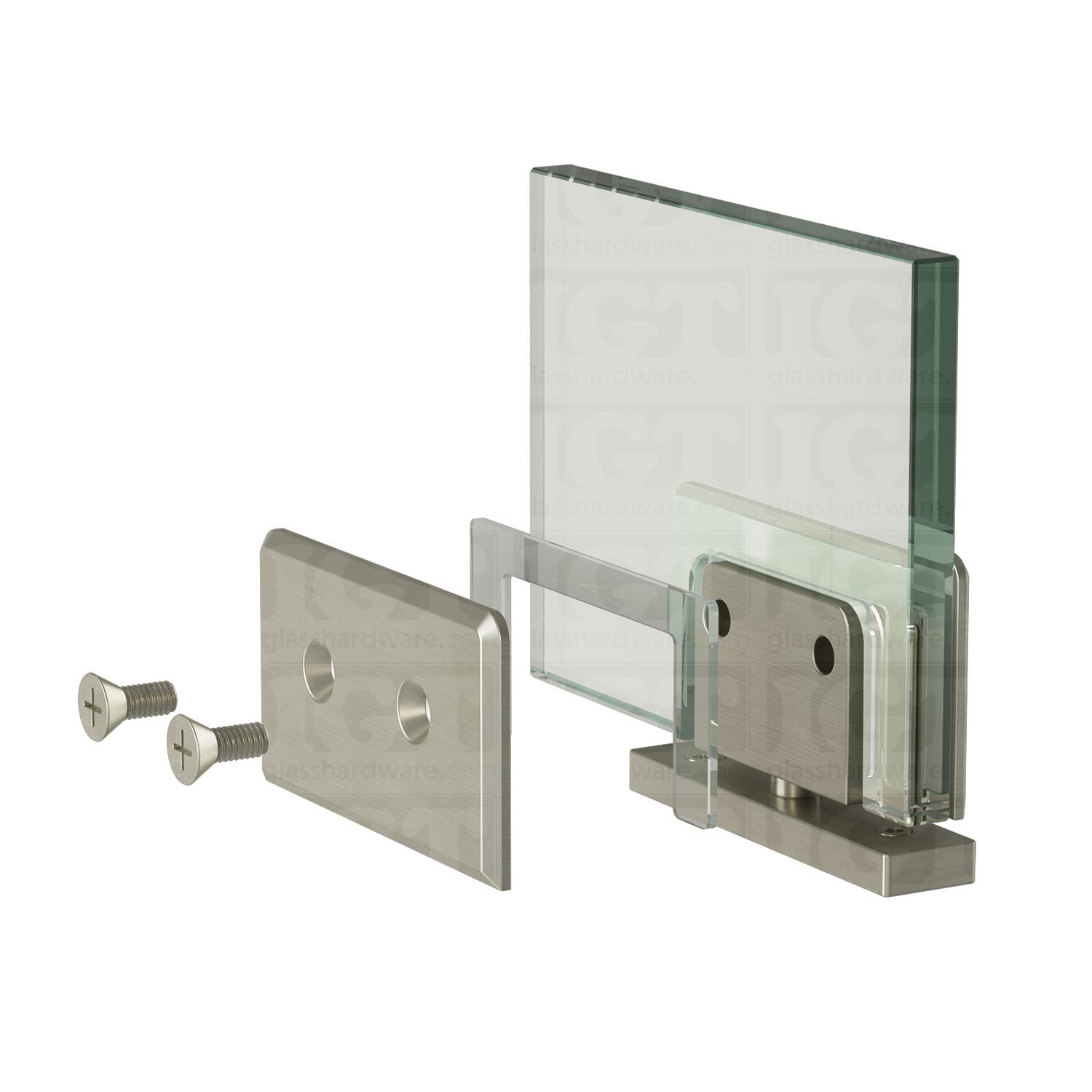

- One Top and Bottom Bilboa Pivot Hinge
- Four screws and four clear gaskets(?)
*See Specifications or Technical Spec Sheet for maximum door capacity details.
| Weight | 1.45 lbs |
|---|---|
| Pkg Size | 3.625 × 4.5 × 1.625 in |
| Material | Solid Brass |
| Finish | Brushed Nickel |
| Width | 3-9/16" (90.49 mm) |
| Hinge Plate Height | 2" (50.8 mm) |
| Self-Centering | Within 15 degrees of closed position |
| Glass Type | Tempered glass |
| Glass Thickness (Inches) | 3/8", 1/2" |
| Maximum Door Capacity | Using 2 hinges: 100 lb, 31" wide (45.4 kg, 787.4 mm) |
